| Magnification: | 3x | Digital Zoom: | Magnification 4X |
|---|---|---|---|
| Angle Of View: | 14° | Objective: | 14.5mm |
| Exit Pupil: | 20mm | Video Output: | 640x480 Resolution 2’ TFT LCD |
| Resolution: | 640x480 | Size: | 134mmx92mmx47mm |
| High Light: | 640x480 Monocular Night Vision Scope,640x480 High Zoom Monocular,640x480 Powerful Zoom Monocular |
||

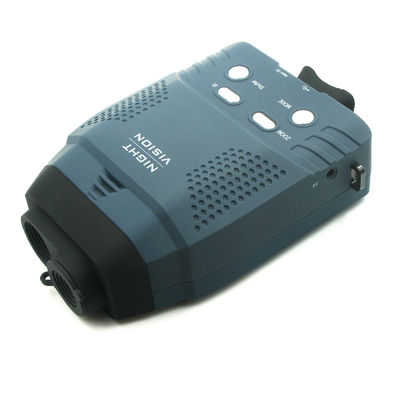

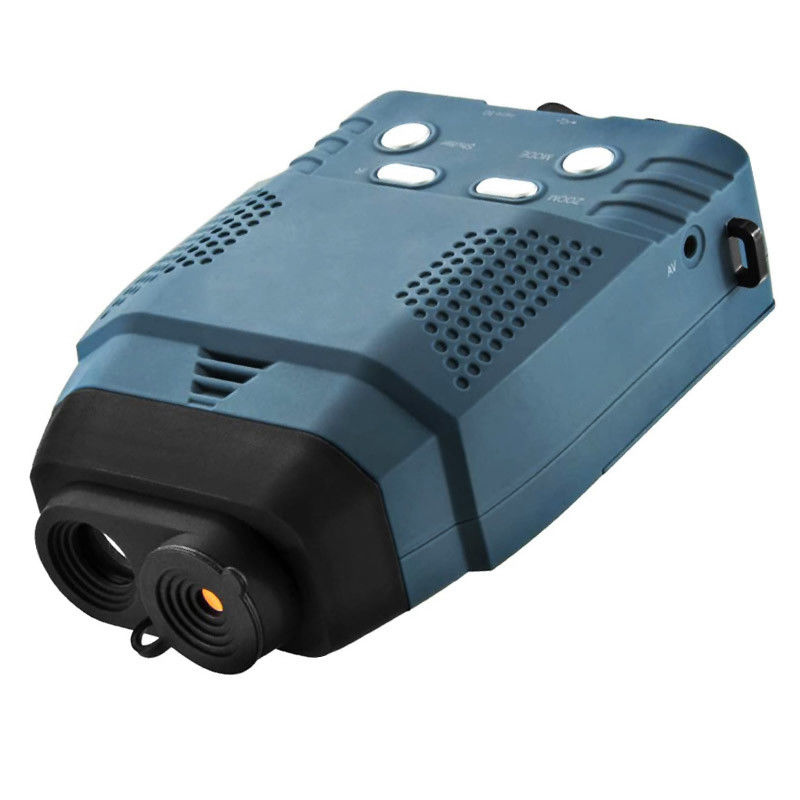

Powerful 4x Digital Camera 640x480 Monocular Night Vision Scope
3x Night Vision Monocular with Built in Camera Digital Zoom magnification 4X
Product description
Clearly see up to 3x magnification in the dark with the new BNV-70100 Night Vision Monocular. The BNV-70100 delivers high magnification for better image resolution and a clearer view of targets in the distance. The infrared illuminator allows viewing in the dark up to 328ft/100m and is ideal for a wide variety of nighttime uses such as surveillance, nighttime hunting and general observation. Requires 4xAA batteries (not included).
3x Magnification with 2x Digital Zoom
3W Infrared Illuminator Allows Viewing in the Dark
Lighting System IR Wavelength: 850nm
Durable Weather and Water Resistant Housing
Screen Resolution 640 x 480
Easily Transfer Files to a Computer
Records Images and Video
Light Weight & Portable
These Binoculars are both compact and light weight making them ideal for a wide variety of nighttime uses such as surveillance, nighttime hunting, and general nighttime observation.
Day and Night Viewing
The infrared binoculars offer 3x magnification viewing in daylight or complete darkness using powerful infrared illuminators.
Digital System
Look through the binoculars to capture an image or record a video, and then view files directly in the binocular's internal screen or share files to be viewed on the television or computer
Specification:
|
Model |
BNV-70100 |
|
Catalog |
Function Description |
|
Optical Performance |
Magnification power 3X |
|
Digital Zoom magnification 4X |
|
|
Angle Of View 14° |
|
|
Objective Aperture 14.5mm |
|
|
Exit Pupil Distance 20mm |
|
|
F# for Objective lens 1.1 |
|
|
Minimum viewing distance 1m |
|
|
Viewing in the darkness up to 100m |
|
|
Adjustment method by Manual |
|
|
Video Output |
640x480 resolution 2’ TFT LCD |
|
Video Recording format H.264 |
|
|
AVI format |
|
|
Imager |
CMOS high-sensitivity Sensor |
|
Size 1/5” |
|
|
Resolution 640x480 |
|
|
JPEG Format |
|
|
IR LED |
3W Infared LED with 850nm |
|
Angle 16° |
|
|
Adjustment method: 4 modes (high, middle, low, off) |
|
|
Displayer |
Screen size 35” at 2M |
|
Resolution of screen 320x240 |
|
|
Micro SD Card |
Support 512MB ~ 32GB |
|
Hardware buttons |
Power on/off |
|
Snap |
|
|
Mode selection |
|
|
Zoom |
|
|
IR switch |
|
|
Operation |
Preview |
|
Capture JPEG file in SD storage |
|
|
Record AVI file in SD storage |
|
|
Playback media file from SD storage |
|
|
Power |
Working voltage DC 4.5V – 6.0V |
|
4 pcs AA Battery |
|
|
Battery life: 2/3.5h working time with IR on/off |
|
|
System |
4 modes (Capture, Video, Playback, Menu) |
|
Single frame Image Capture |
|
|
Video image Record |
|
|
Playback image |
|
|
Delete image |
|
|
7 level IR switch |
|
|
SD card format |
|
|
Power save (Off/1 min/ 5 min/ 10 min) |
|
|
Light Freq. 50/60HZ |
|
|
Format |
|
|
TV mode (NTSC/PAL) |
|
|
Version |
|
|
Signal Processing |
CVBS Format |
|
Output USB/AV |
|
|
Applicable mode |
Daytime, Night, Darkness (with IR) |
|
Size |
134mmx92mmx47mm |
|
Net weight |
250g (without battery) |
|
Package |
USB cable/ AV cable/ micro SD card |
