Product Details:
Payment & Shipping Terms:
|
| Magnification: | 1x | Digital Zoom: | Magnification 5X |
|---|---|---|---|
| Angle Of View: | 16.8º×20.2º | Objective: | 18 Mm |
| Exit Pupil: | 15 Mm | CMOS Size: | 1/3" |
| Display: | Resolution -750×560 | Size: | 102×76×49 Mm |
| High Light: | 5x18mm Infrared Night Vision Monoculars,750×560 Night Vision Monoculars,5x18mm Night Scope Monocular |
||

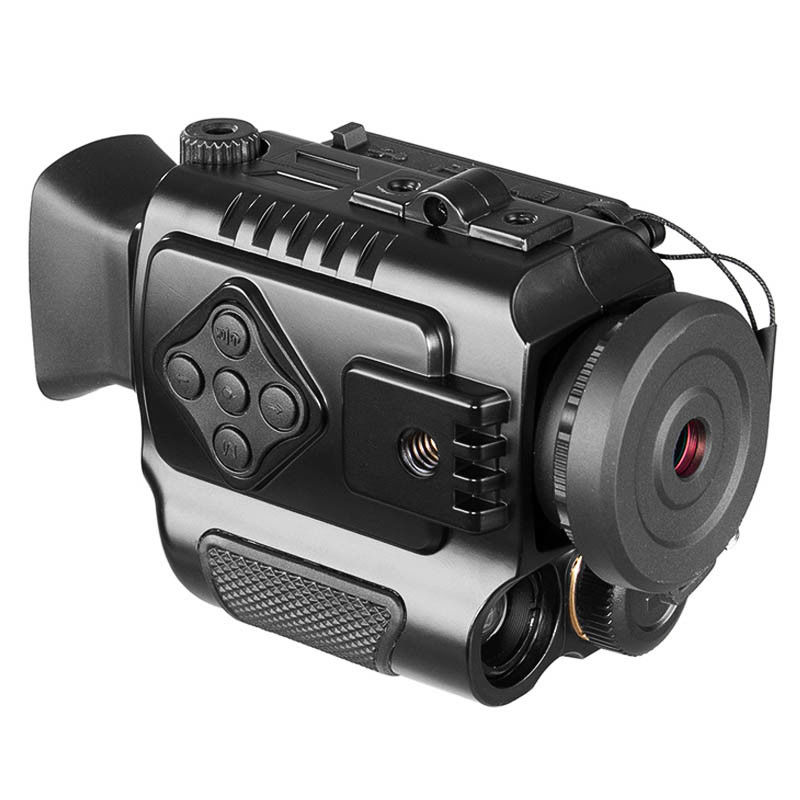

5x18mm Infrared Night Vision Monoculars
5x18mm Night Vision Monocular with Built in Camera Digital Zoom magnification 5X
Best choice for going out
The pocket-sized size makes it easy to carry around the keys and the overall design makes it easier to control with one hand.Easy to go out hunting patrol and observation record equipped with interface can be external helmet tripod and other hands free lightweight design makes trekking no longer a burden.
Better observation experience
The product adopts the latest ultra-low illuminance dynamic COMS sensor, with built-in infrared lamp auxiliary lighting, whether in the day or night can obtain excellent observation effect.The more perfect internal design brings better observation effect and observation experience. The addition of infrared color filter greatly improves the observation effect of the equipment in the daytime, reduces the overexposure under the natural light in the daytime, and restors the more real color, truly realizing the dual use of day and night.In the daytime, the observation color is more realistic, and the observation target is clearer at night. The observation distance reaches 200m under the all-black condition.With the functions of taking pictures, recording and video recording, it is suitable for movement and movement, even in the night, you will not miss the moment you want to record.
Better image output
The higher resolution of the screen, the observed scene during the use of better output effect, the detail is clear.The built-in infrared auxiliary lamp can be adjusted automatically or manually according to the user's needs. The screen brightness can be adjusted manually to meet the observation habits of each person. The field of view adjustment also enables different groups to get the best observation effect.
Feature:
1)Photographing, video recording and playback in both daytime and nighttime, 1X optical zoom and 5X digital zoom
2)Daytime: Video recording, photographing, sound recording;full-color images; format VGA 640*480
3)Nighttime: In low–light condition or complete darkness, can see object 200m away through the built-in infrared ("IR" for short) lamp;video recording, photographing, sound recording; black-and-white images
4)Support TF card (4G-32G) for storage expansion; video recording time: 1 ~16 h (a high-speed high-quality TF card is Recommended)
5)USB port for direct connection with a computer for data viewingor charging the rechargeable battery in the product

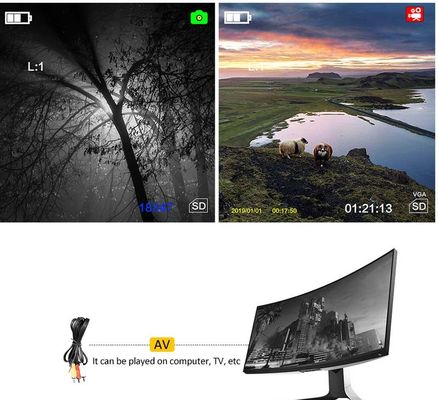

6)Video/audio output jacks for connection with external PAL/NTSC display
7)Power supply: Use 14500 Large capacity rechargeable Lithium battery section.
8)Operating time: 2 ~3 h for daytime or 1 ~2 h for nighttime, depending on brightness of the IR lamp (maximum brightness for nighttime)
9)Connection with helmet bracket or Picatinny rail
10)This product is the human visual extension of the best auxiliary tool.
Specification:
| Model | BNV-7003-P4 |
| Catalog | Function Description |
| Specification: | 1x18mm |
| Optiacal performance | Magnification - 1X |
| Digital Zoom - 5X | |
| Angle Of View - 16.8º×20.2º | |
| Objective Lens Diameter - 18mm | |
| Eye Relief - 15mm | |
| Eyepiece - Made of rubber,unfoldable,rotating focusing | |
| Diopter Arrange - ±5º | |
| Minimum Focal Length - 0.3m | |
| Focal Length - 57mm | |
| Focal Length Adjustment - Focusing by rotating objective lens unit | |
| Lens Coating - Ultra wideband infrared anti-reflection film | |
| Optical Resolution(s)- 6.6″ | |
| Low-light | Camera Type - CMOS |
| Camera Pixel - 300000 pixels | |
| CMOS Size - 1/3" | |
| Infrared IlluminationWavelength - 850nm | |
| Visible Distance in Dim Light - 2.0m～∞(naturall starlight) | |
| Visible Distance in TotalDarkness - 2.5m～200m(external auxiliary infraredlight) | |
| Spectrum Range - 450-1100nm | |
| Minimum Illumination - 10-3Lux | |
| Infrared Illumination Adjustment - 9 levels | |
| Display | Display Resolution - 750×560 |
| White Balance - Automatic | |
| Day/Night Switch - Automatic | |
| Ambience | Operating Temprature - -20℃ - 45℃ |
| Operating Humidity - Max. 70% | |
| Operating Voltage - 3.5V - 4.2V | |
| Battery - 3.7V 750MAH (14500 CE) | |
| Charging Sourse - 5V 2A/110-220v AC adapter | |
| Battery Durability After FullyCharged - 2.5h(starlight)/1h(IR full on) | |
| Function | SD Card - 8GB TF card,supporting 4-32GB |
| Video Output - YES | |
| Waterproof - IPX4 | |
| USB Interface - Mini USB interface | |
| Tripod Mount - 1/4" | |
| Camera Interface - NO | |
| Anti-viberation - NO | |
| Photo Mode - YES | |
| AV Record Mode - YES | |
| Screen Brightness Adjustment - YES | |
| IR Illumination Adjustment - YES | |
| Playback & Deletion - YES | |
| Time Set - YES | |
| Appearance | Body Material - ABS+PC |
| Color Schemes - black | |
| Dimention - 102×76×49 mm | |
| Weight - 290 g | |
| Inspection | Inspection Standard - YES(Maker's Standard) |
