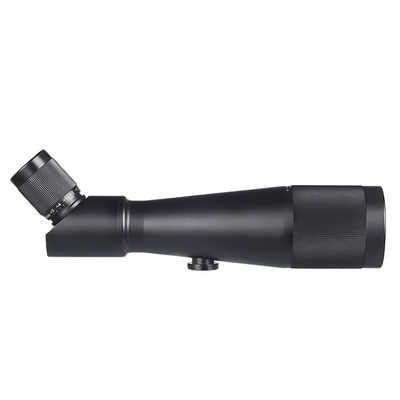

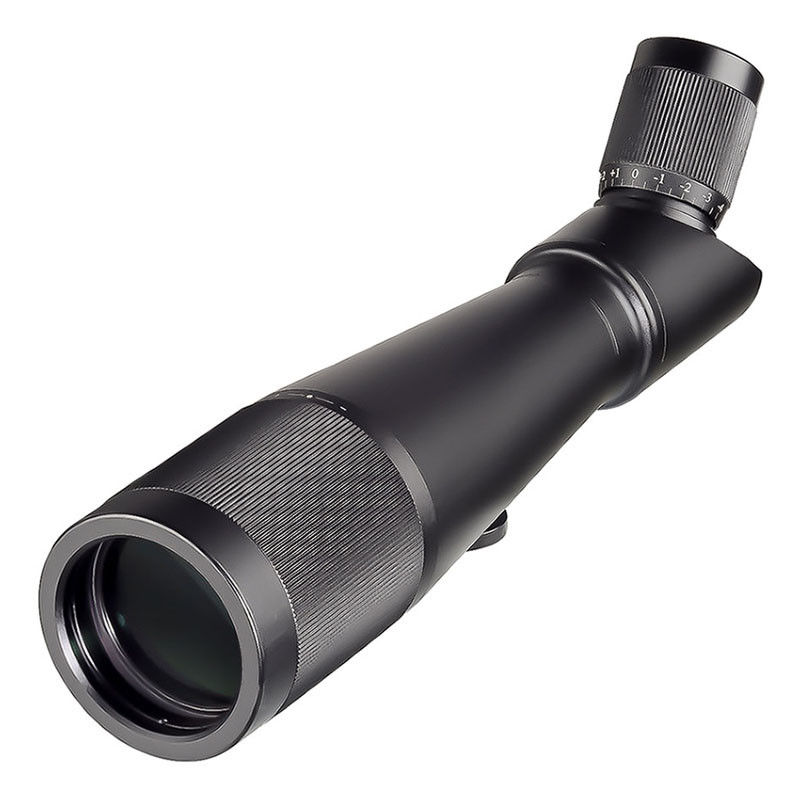

20x40mm Optics Spotting Scope

20x40mm Optics Spotting Scope
20x40mm Optics Spotting Scope 20x40mm Optics Spotting Scope

Large Image :  20x40mm Optics Spotting Scope

Product Details:
Place of Origin: China
Brand Name: Kinglux optics
Model Number: BSW630-20x40mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Delivery Time: 45-60
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000
Detailed Product Description
Specification: 20x40mm Magnification: 20x
Obj.lens (mm): 40mm Angle: 3.3°
Field Of View At 1000m: 58m/1000m Apparent Field Of View: 66°
Exit Pupil (mm): 2.0mm Eye Relief (mm): 13mm
Size (mm): 233x53x75mm Lens Coating: Fully Multi
Product Material: 100% Metal + Optical Glass Waterpoof: Yes
High Light:

20x40mm Optics Spotting Scope


20x Optics Spotting Scopes


20x40mm Military Tactical Scopes

20x40mm Optics Spotting Scope


20x40mm Optics Spotting Scope 20x Magnification100% metal optical glass target shooting


This spotting scope features a powerful zoom magnification range magnification,3.3 degree angled eyepiece ergonomic design allows more comfortable viewing. Field-of-view is 58m/1000m, brings nature closer to you than ever.


Spotting Scope 20 x40mm
Characteristics and functions
* Fully-coated optics
* Robust,Waterpoof-100% metal
* 16x magnification
* Link to your phone to take quality photos from a distance
* Tripod can be used for mobile phone selfie stick
* This spotting scope is ideally suited for Target Shooting,observing birds and nature.
* The fully-coated optics ensure a clean, high-contras image.
* The robust carrying bag shields the scope from dirt and dust.

Variable 20x magnification and 40mm objective lens, dynamic lens focusing system makes it easy to target.
Its sealing property ensures the living waterproof and fogproof function. Completely protection for all weather conditions.
Great for targeting, hunting, astronomy, marine and general observation. Sets the standard for portability, optical performance and value
Comes with a digiscoping cell phone adapter - which enables you to take videos and images in the distant world. Explore the nature of the world easily through your screen. With Carrying Case, Eyepiece and Lens Protection Covers, Cleaning Cloth .


Fully Multi-coated Lens
The lens are all fully multi-coated and features BAK4 roof prism to increases light transmission and delivers bright, clear, high-contrast images even in low-light conditions. For long range viewing, a dual focus wheel system enables fast and fine-tuning focus adjustment,allows you to lock onto your target and zoom in for more detail clearly


Waterproof Fogproof
The waterproof spotting scope provides exceptional performance in the most rugged conditions. the spotter scope optics are sealed with O-rings to prevent moisture, dust, and debris from getting inside the spotting scope, fogproof barrel is filled with nitrogen gas to inhibit internal fogging, completely protection for all weather conditions


Model: BSW630-B
Specification: 20 x 40mm
Magnification: 20x
Obj. Lens (mm): 40mm
Angle: 3.3°
Field of View at 1000m: 58m / 1000m
Apparent Field of View: 66°
Exit Pupil (mm): 2.0mm
Eye Relief (mm): 13mm
Dusk Index: 28.28
Relative Brightness: 4
Lens Coating: Fully multi
Focus System: Objective lens + eyepiece dual focus
Product Material: 100% metal + optical glass
Tripod Link: Yes
Tripod Height Range: 250mm - 760mm
Waterproof: Yes
Size (mm): 233 x 53 x 75mm
Weight (g): 404 g
Accessories: Mobile phone photo accessories
Accessories: Tripod can be used for mobile phone selfie stick
Packing Size: 340 x 235 x 80mm
Packing Weight: 1361 g

20x40mm Optics Spotting Scope 0
20x40mm Optics Spotting Scope 1
20x40mm Optics Spotting Scope 2

20x40mm Optics Spotting Scope 3

20x40mm Optics Spotting Scope 4

20x40mm Optics Spotting Scope 5

Model BSW 630 Spotting Scope
Specification 16x 33 mm 20x 40 mm
Magnification 16x 20x
Obj.lens (mm) 33 mm 40 mm
Field Angle 4.8° 3.3°
Field of View @ 1000m 84 m 58 m
Field of View @ 1000yds 252 ft 175 ft
Apparent Field of View 76° 66°
Exit pupil (mm) 2.0 mm 2.0 mm
Eye relief (mm) 13 mm 13 mm
Diopter Adjustment ±5 ±5
Dusk Index 22.97 28.28
Relative Brightness 4 4
Prism System Roof prism Roof prism
Prism Glass Bak4 Bak4
Focus System Obj.lens +Eyepiece Obj.lens +Eyepiece
Lens Coating Fully Multi Fully Multi
Product Material 100% metal + optical glass
Tripod Link Yes Yes
Waterproof Yes Yes
weight 0.315 kg 0.404 kg
size (L x W x H) 175 x 46 x 65mm 340 x 235 x 80mm


1. Can your manufacturer provide OEM unique product?
Yes,Welcome to do OEM unique product. Such as packagingcolor box, color logo printing, and even shape with function design services.
2. How about quality ensure?
We will patiently communicate with you the details and requirements of the product before production. We are a manufacturer certified by Nande Company. All accessories are produced by ourselves. There are 8 inspections from the parts to the shipment for 100% inspection to ensure that we reach you The quality requirements put forward.
3. What is the delivery period and transportation?
All of our accessories are produced internally and the process is faster than our peers. In addition, we are able to deliver goods directly to your warehouse with a partner logistics company.
4. Q:What's your delivery time?
A: 3~5 days after payment received and all items confirm
5. Q: What's your best price for this binoculars?
A: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want. 6.Q:How to order
1) Contact us to get our E-catalog with latest designs.
2) Select the design in our catalog then give us the mode No. and quantity per design.
3) We will quote you the best price according to your list.
4) After you agree on our price, we will issue the proforma invoice to you.
5) You can make the payment and we will prepare the goods to you.
6) After we ship them out, we will give you the tracking number.
